Balboa SpaTouch 4+ Touchscreen Topside Control with Wi-Fi – 57562 / 34-57562

Upgrade or replace your compatible hot tub control panel with the Balboa SpaTouch 4+ Touchscreen Topside Control, part number 57562 / 34-57562. Designed for compatible Balboa BP-series spa control systems, this advanced topside panel combines a responsive full-color touchscreen, built-in Wi-Fi, and ControlMySpa™ mobile-app integration in one modern spa-side interface.

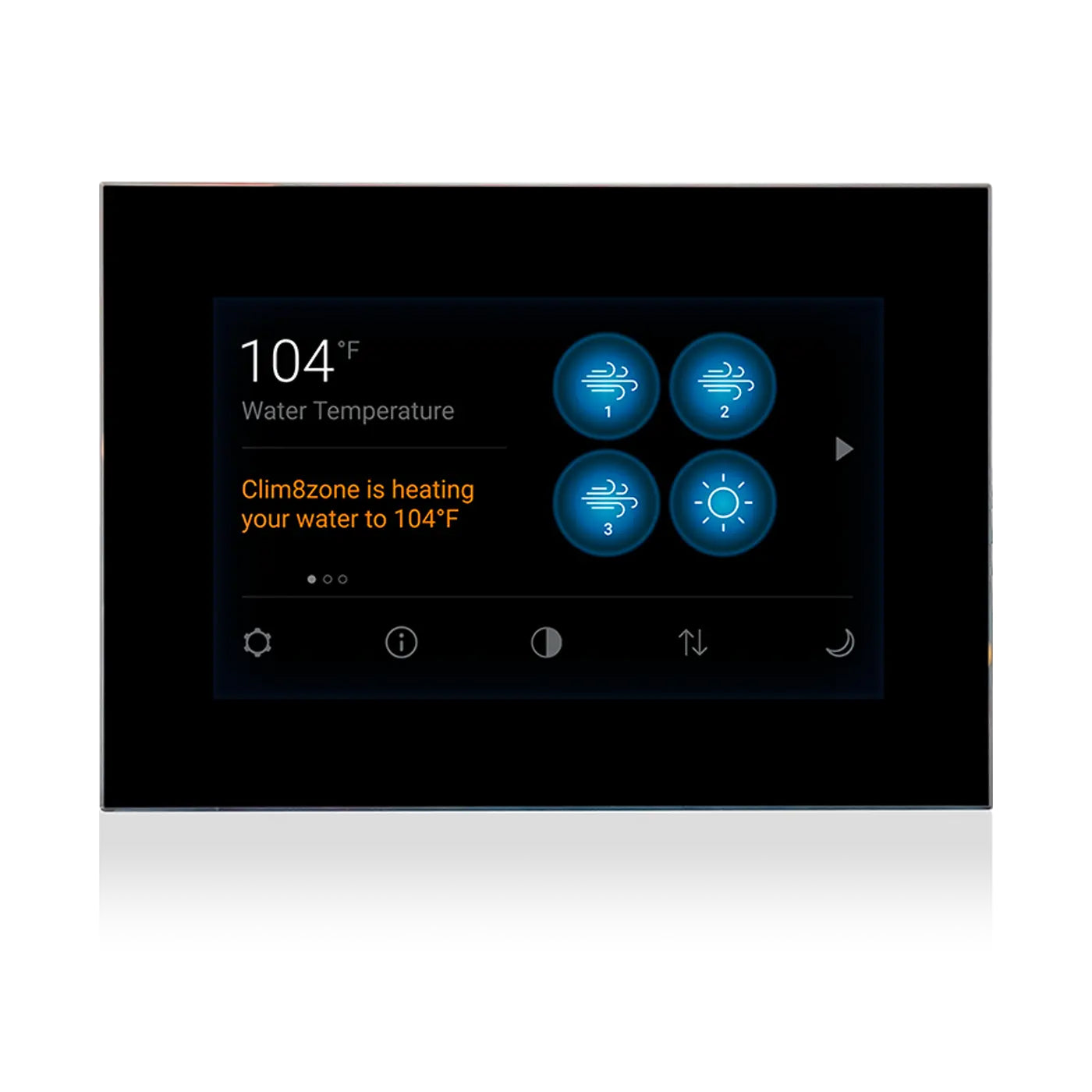

The graphic-driven display provides convenient access to available hot tub functions, including water temperature, pumps and jets, lighting, filtration cycles, heat modes, screen settings, system locks, notifications, and diagnostics. The exact functions displayed depend on the equipment and programming supported by your spa control system.

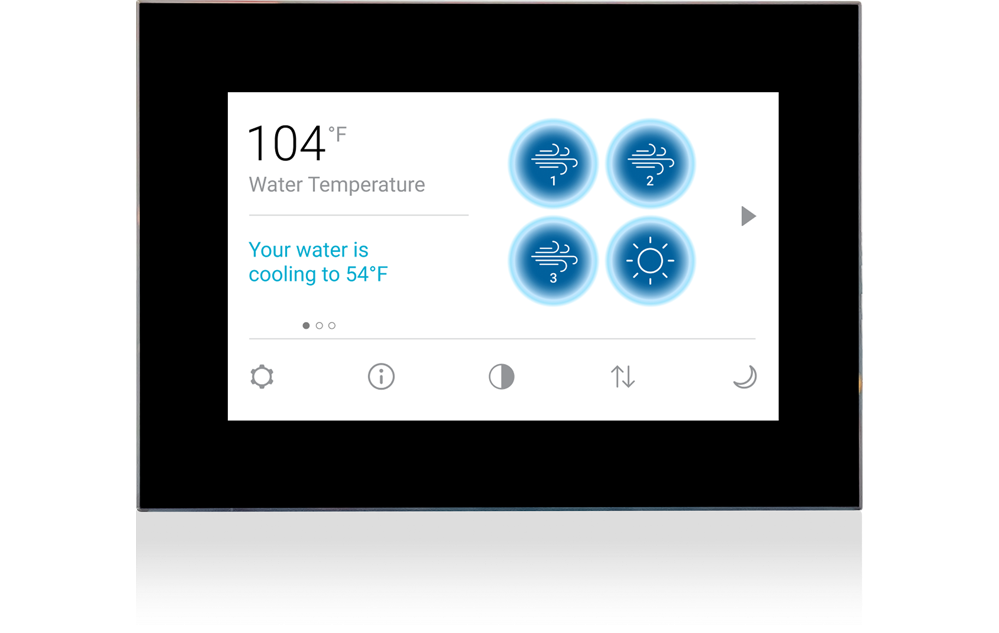

Modern Full-Color Touchscreen Control

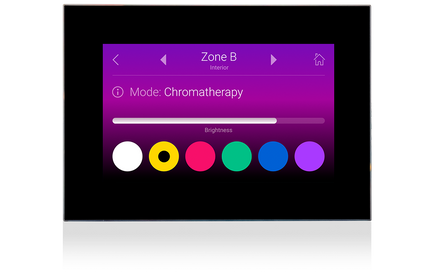

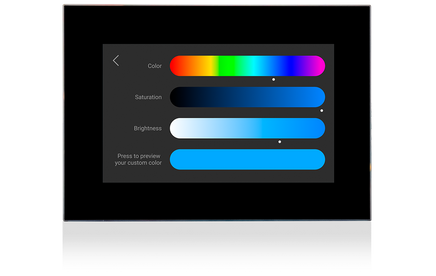

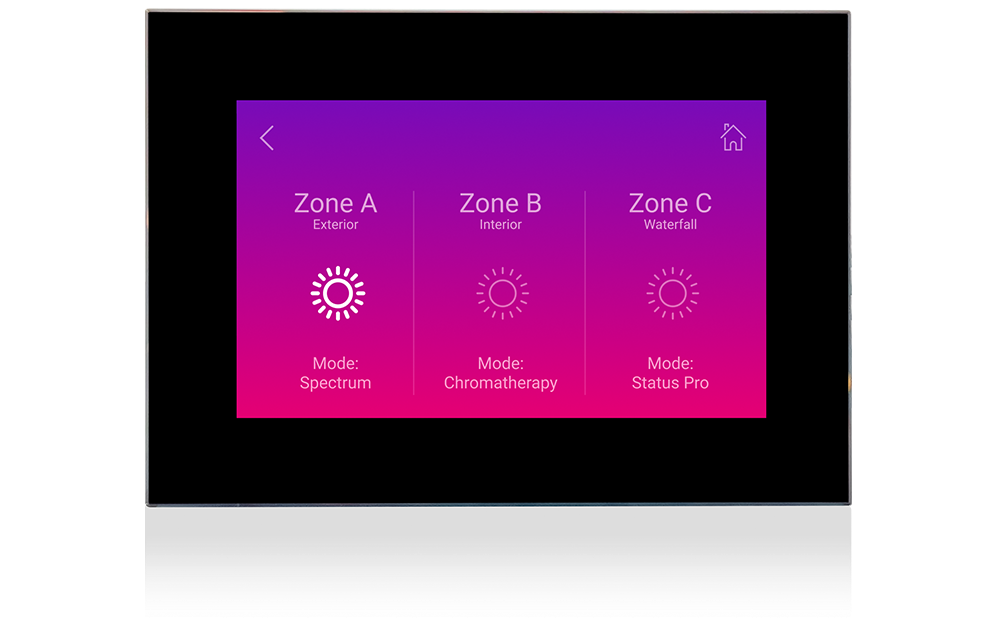

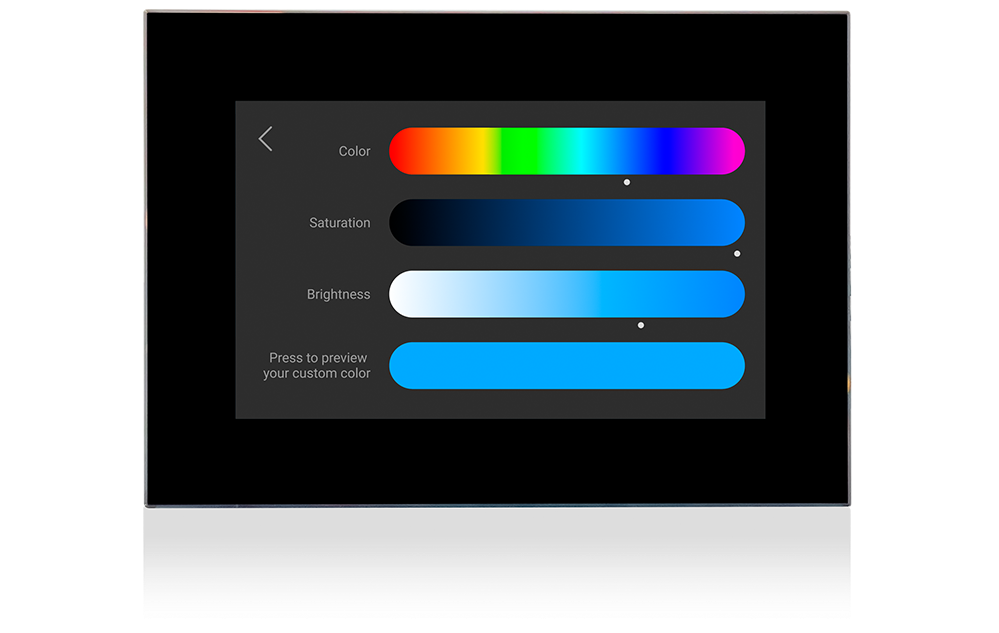

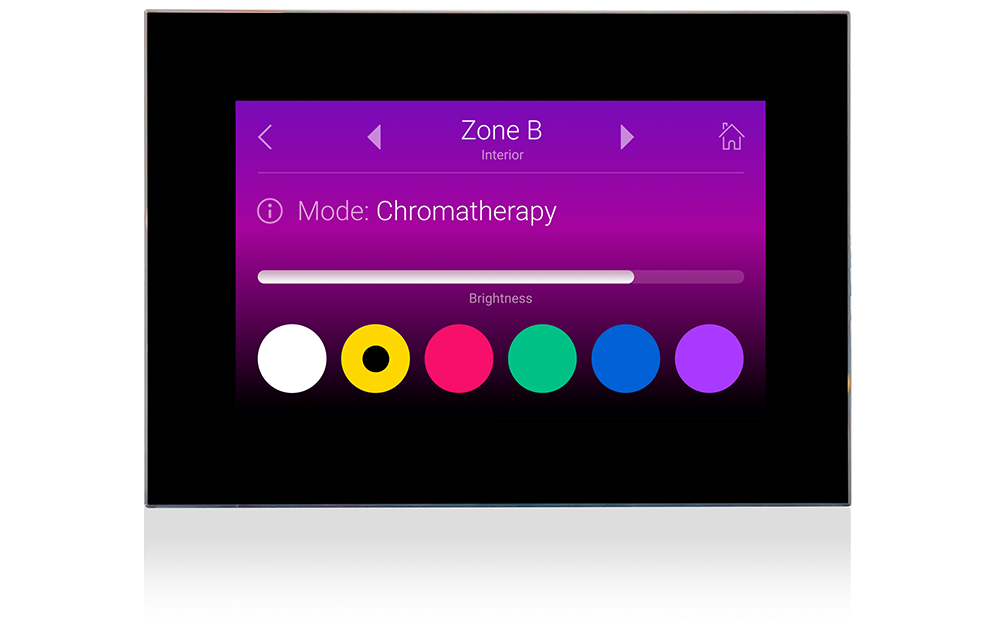

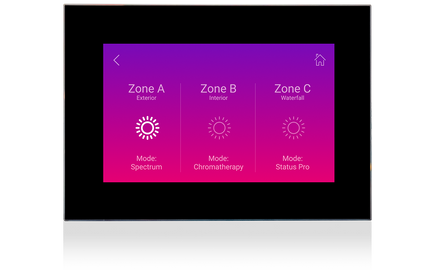

The SpaTouch 4+ replaces a traditional push-button keypad with a high-resolution capacitive touchscreen. Interactive icons, real-time status messages, and an intuitive menu system make it easier to operate and monitor compatible spa equipment.

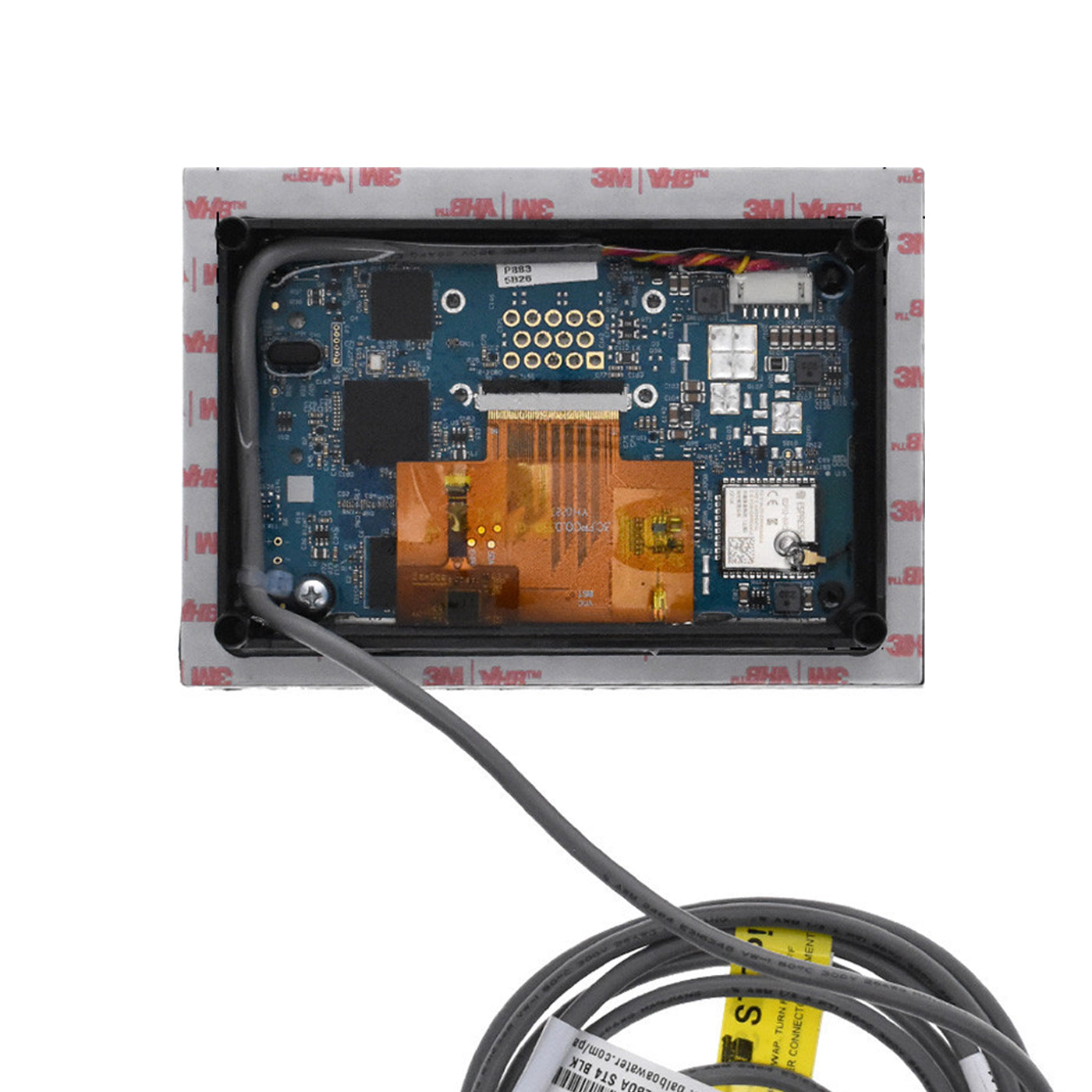

The interface is powered by Linux and an ARM® dual-core 800 MHz processor for responsive navigation and reliable performance. Balboa also protects the internal motherboard with specialized potting material designed to provide a watertight seal around the electronics.

Built-In Wi-Fi and ControlMySpa Compatibility

Built-in Wi-Fi allows the Balboa SpaTouch 4+ to connect with the ControlMySpa™ app. Once properly connected and registered, compatible spa functions can be monitored and controlled from a smartphone or tablet.

ControlMySpa remote access requires spa registration and a dealer-supplied eight-digit CMS code. The code is entered through the touchscreen before the displayed QR code is scanned with the ControlMySpa app. Contact us before ordering when CMS registration or activation assistance is required.

Key Features

• Genuine Balboa Water Group SpaTouch 4+ control panel
• Full-color capacitive touchscreen
• Graphic-driven, button-free navigation
• Built-in Wi-Fi connectivity
• ControlMySpa mobile-app integration
• Real-time system status, reminders, warnings, and notifications
• Control of compatible temperature, jets, pumps, lighting, filtration, and heat settings
• Linux operating system
• ARM dual-core 800 MHz processor
• Fully potted internal electronics

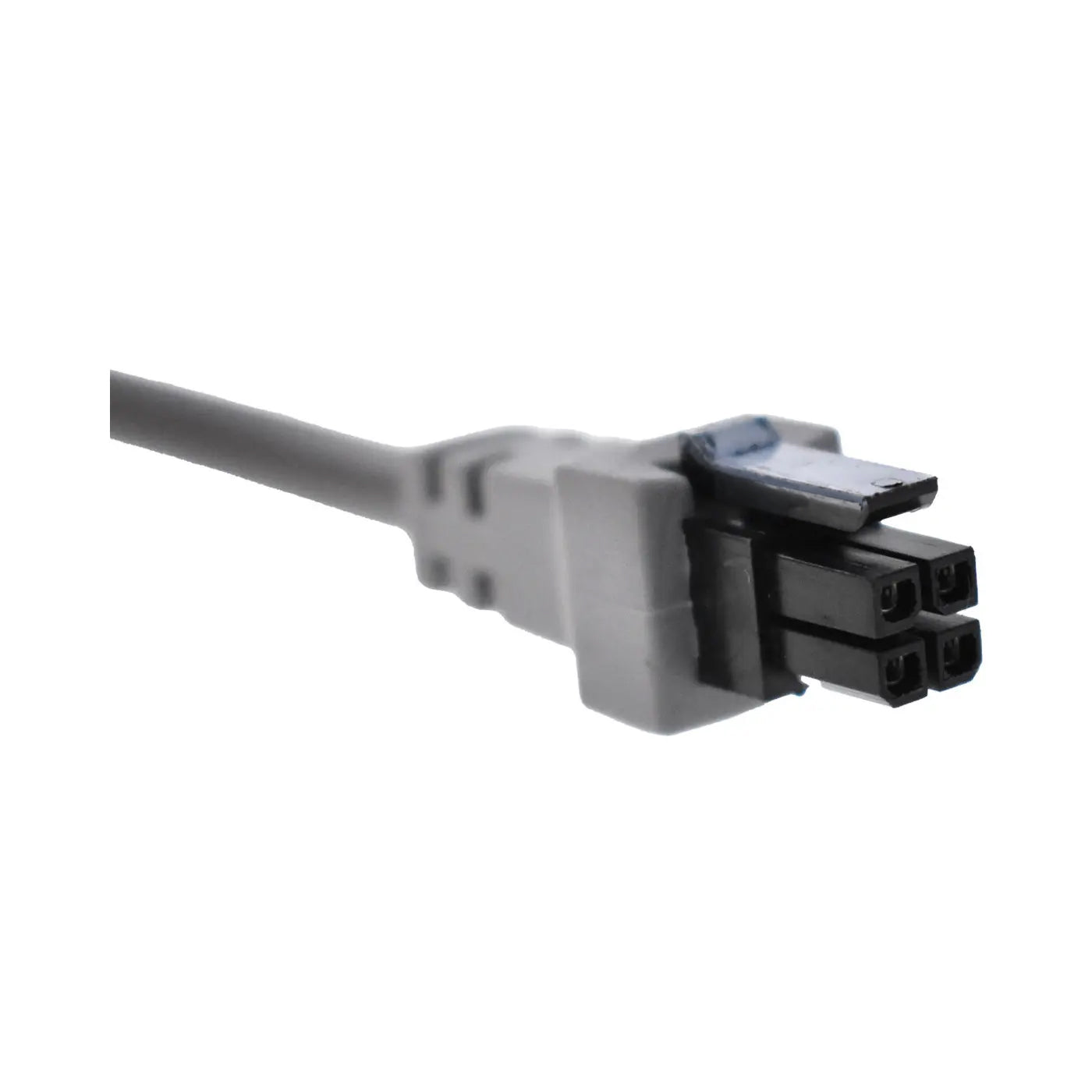

• Four-pin Molex-style connector
• Approximately seven-foot control cable
• Factory overlay included

Product Specifications

Hydro-Quip identifies the panel as part 34-57562, measuring approximately 7.3 by 4.6 inches, with a four-pin Molex-style connection, full-color display, and included overlay.

Balboa SpaTouch 4+ Compatibility

The Balboa 57562 is intended for compatible Balboa BP-series spa control systems. It may serve as an upgrade or replacement for select configurations using:

• Balboa SpaTouch
• Balboa SpaTouch 2
• Balboa SpaTouch 3 or SpaTouch 3+
• TP200T and TP200W
• TP240T and TP240W
• TP260T and TP260W
• TP500
• TP600
• TP700
• TP800
• TP900

Hydro-Quip lists these panel families as potential replacements, but compatibility should not be determined by appearance alone. Control-box model, circuit-board software, connector type, equipment configuration, and available mounting space must all be verified before ordering.

Verify Compatibility Before Ordering

Before purchasing the Balboa SpaTouch 4+ 57562:

1. Confirm that the existing control system is a compatible Balboa BP-series system.
2. Verify that the existing panel uses a four-pin Molex-style connector.
3. Measure the available mounting area and compare it with the 7.3" × 4.6" panel dimensions.
4. Check whether an adapter or trim plate is needed for the existing shell opening.
5. Confirm whether you will need a CMS registration code for ControlMySpa access.
6. Compare your existing control-panel and circuit-board part numbers.

For assistance, send clear photos of the existing topside panel, its cable connector, and the label inside the spa control box before placing your order.

What Is Included?

• One Balboa SpaTouch 4+ touchscreen topside control
• Attached control cable
• Four-pin Molex-style connector
• Factory-installed overlay

Unless specifically stated in the product options, adapter plates, extension cables, CMS activation codes, control boxes, and installation materials are sold separately.
